Interoperability and APIs#

SAMP#

The Simple Application Messaging Protocol (SAMP) is a communications protocol that allows client software to exchange images and data. It was developed by the International Virtual Observatory Alliance (IVOA) and is used widely in astronomy.

The CDS website is SAMP enabled and wherever you see the small antenna icon, that means you can send that image or table to any SAMP client. You must have a SAMP hub running on your computer and one or more SAMP clients.

_images/SAMP_1.png

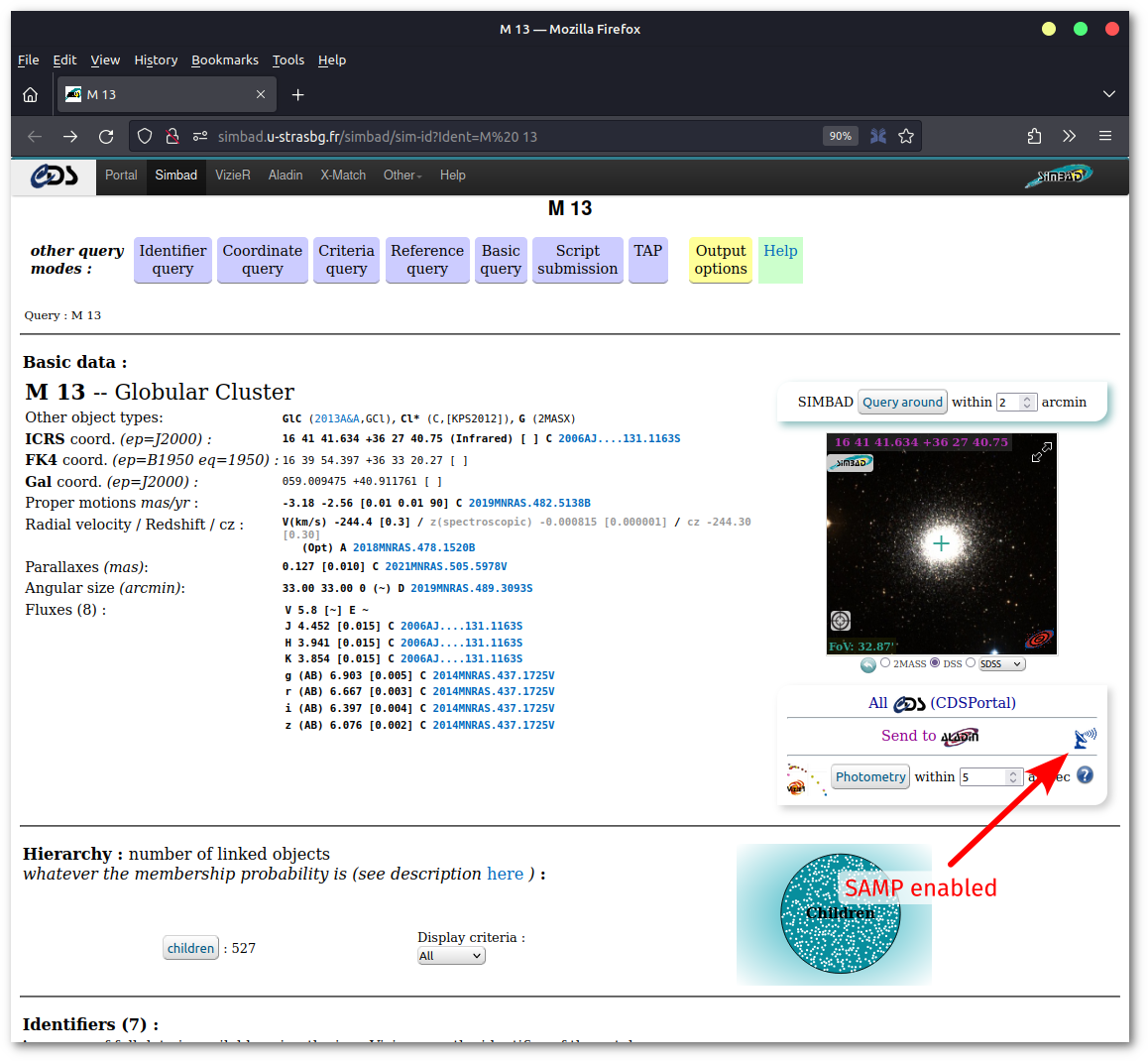

Fig. 14 SAMP enabled CDS#

The software listed below are SAMP enabled. TOPCAT and Aladin are both hubs and clients the others are clients only. There is also a standalone SAMP hub that comes with Astropy that can be started from the command line with the command $ samp_hub.

CDS Aladin#

Aladin ( http://aladin.cds.unistra.fr ) is an interactive sky atlas for visualizing astronomical images and interactively exploring astronomical catalogs and databases. The Aladin Sky Atlas comes in two versions, Aladin Desktop to run locally on your computer and Aladin Lite, a Javascript web application.

The Aladin Sky Atlas is well integrated with CDS and is SAMP enabled, obviously. You can display and explore astronomical images from a large number of sources in HiPS, FITS, and JPG or PNG formats, and overlay astronomical data from SIMBAD, VizieR, and numerous other data sources. You can search for object IDs or coordinates from the command bar or explore images and catalogs interactively from the collections data tree. You can exchange data and images with other applications (Carte du Ciel, DS9, TOPCAT, etc.) via SAMP. Clicking on the image in the field will send coordinates to Carte du Ciel and vice versa.

See the Aladin documentation for more information.

_images/aladin_1.png

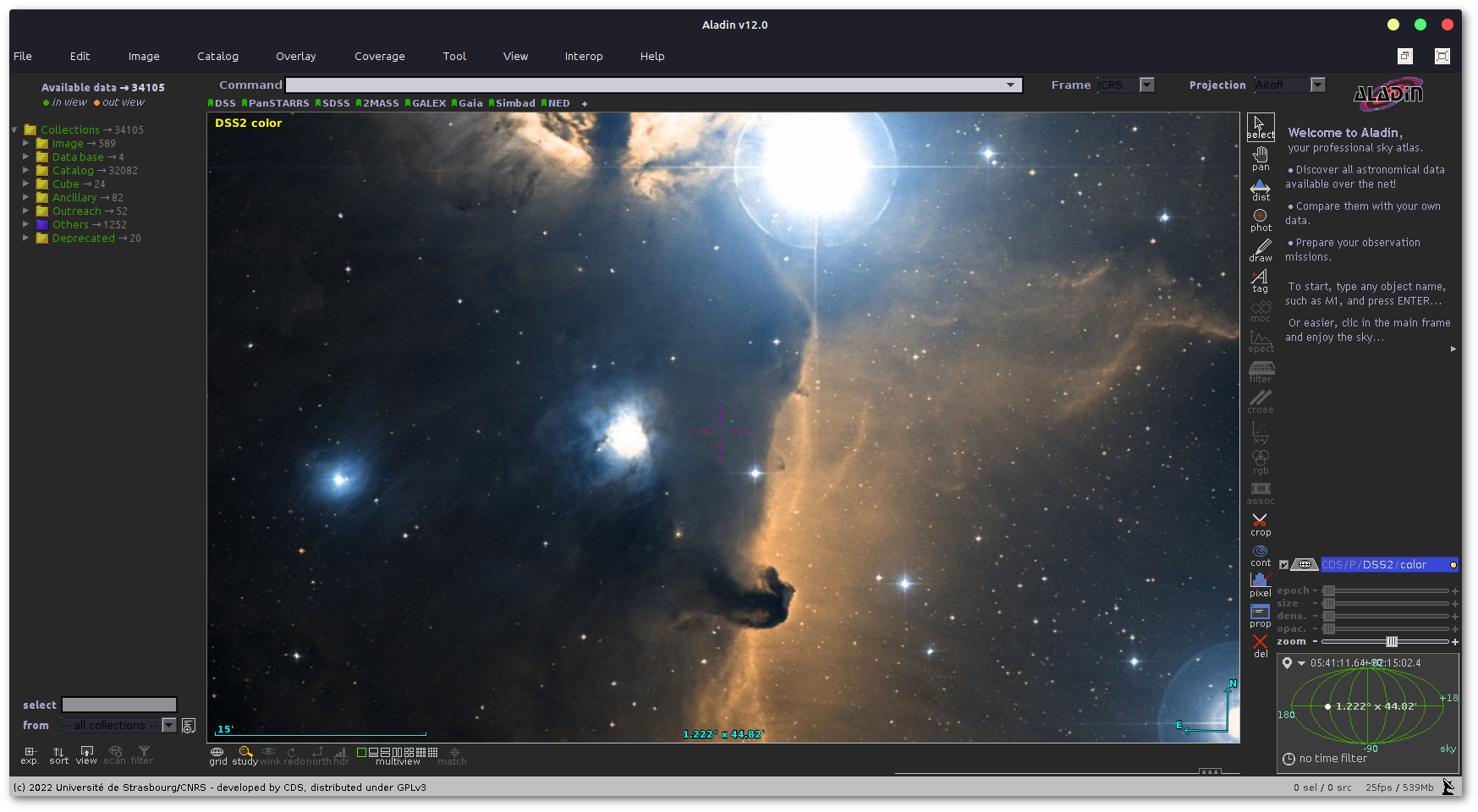

Fig. 15 Aladin Sky Atlas#

There is also a Jupyter Aladin Lite extension that will enable interactive sky visualization in Jupyter notebooks. See the CDS-astro / ipyaladin Github page for installation instructions and usage.

TOPCAT#

Tool for OPerations on Catalogues And Tables (TOPCAT) is an interactive graphical viewer and editor for tabular data. TOPCAT is a SAMP hub and client and can send and receive data from SAMP enabled applications and websites. It can also query CDS and many other data repositories directly. It can filter, compute statistics and plot information in astronomical data tables.

For additional information see the TOPCAT help pages.

_images/topcat_1.png

Fig. 16 TOPCAT table editor#

Carte du Ciel#

Cartes du Ciel is a free and opensource skychart program that is very useful in planning observations. It is SAMP enabled and can send and receive coordinates, images and catalog data from other SAMP enabled applications and websites. You can also load VO Tables from CDS as catalogs and search SIMBAD or Vizier by object name or coordinates from the object properties menu.

For additional information see the Cartes du Ciel documentation.

_images/cdc_details.png

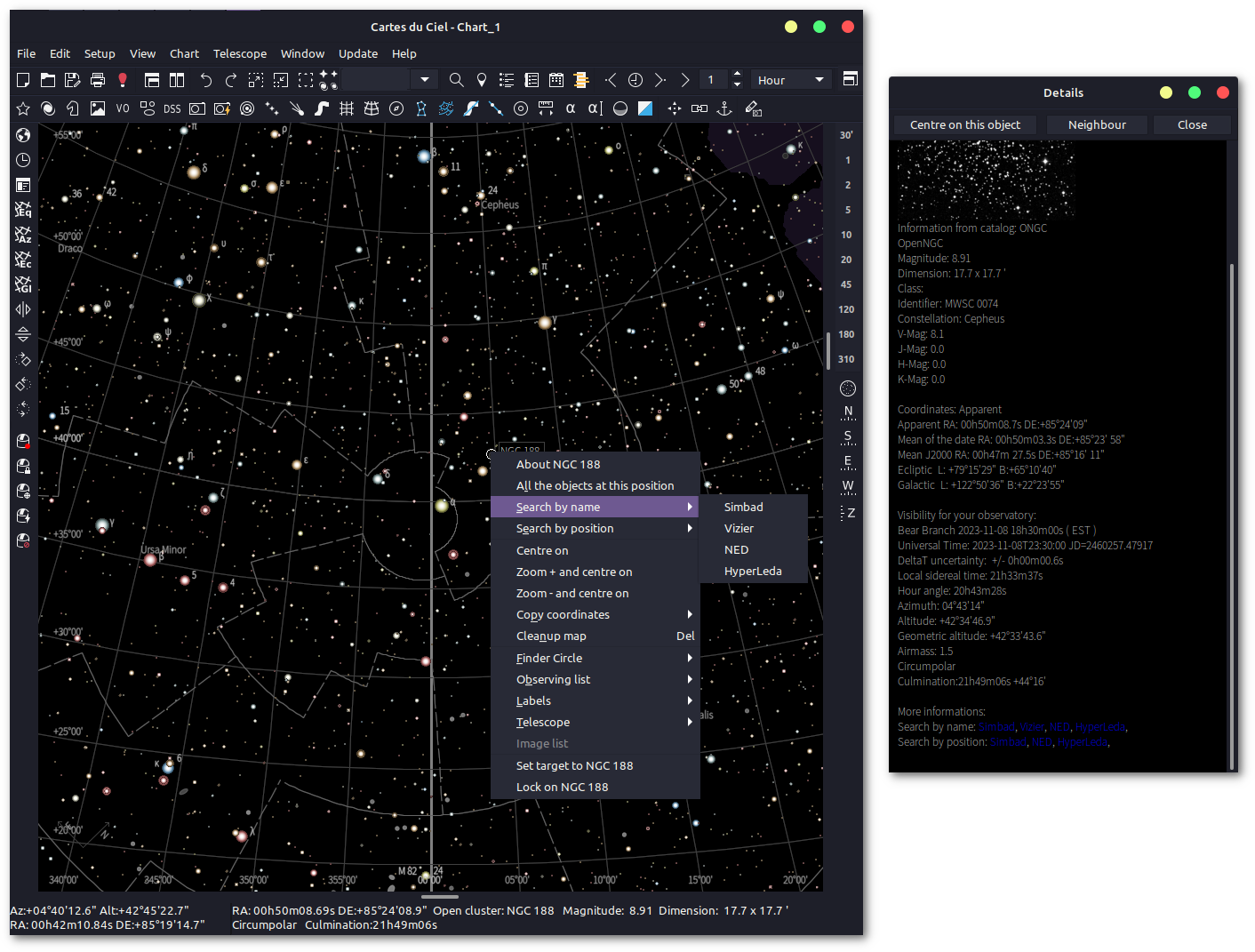

Fig. 17 Carte du Ciel & CDS#

_images/cdc_vo_1.png

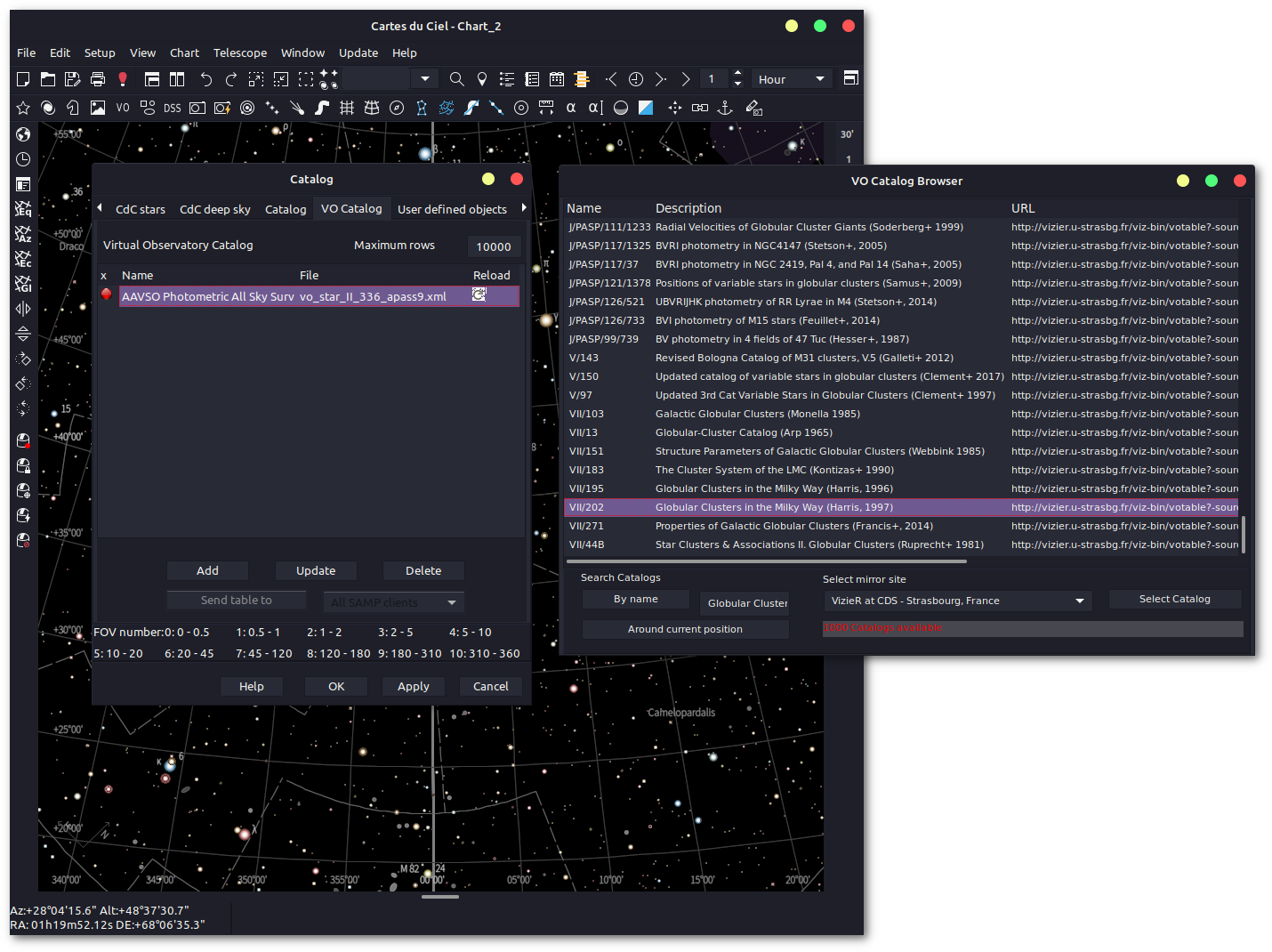

Fig. 18 Virtual Observatory Catalog#

_images/cdc_vo_2.png

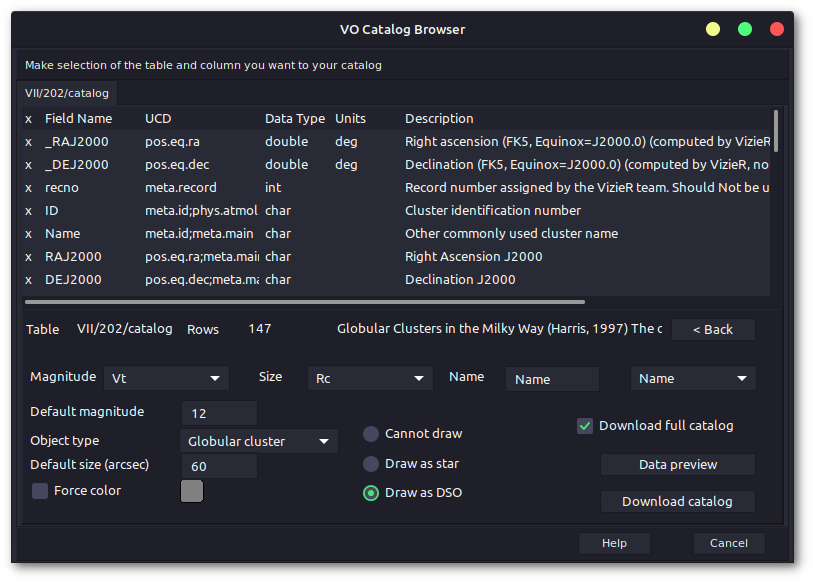

Fig. 19 Virtual Observatory Catalog#

_images/cdc_vo_3.png

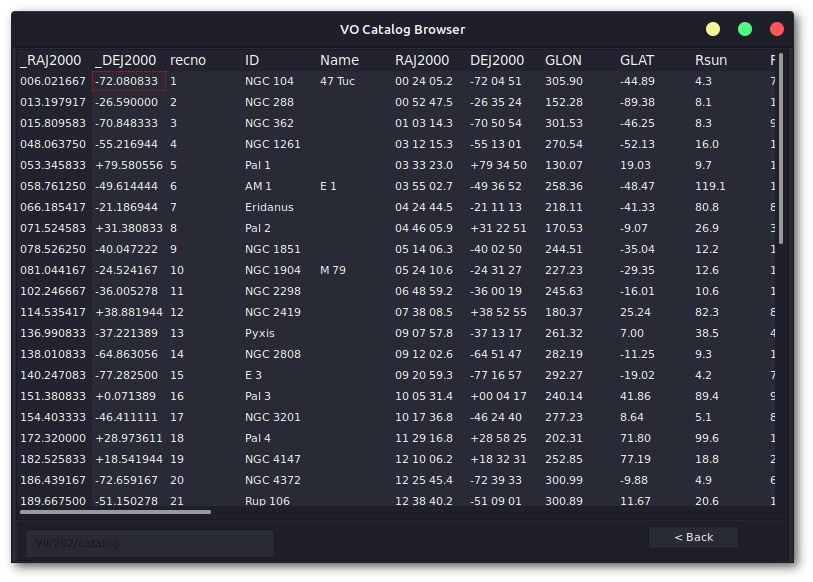

Fig. 20 Virtual Observatory Catalog#

_images/cdc_samp.png

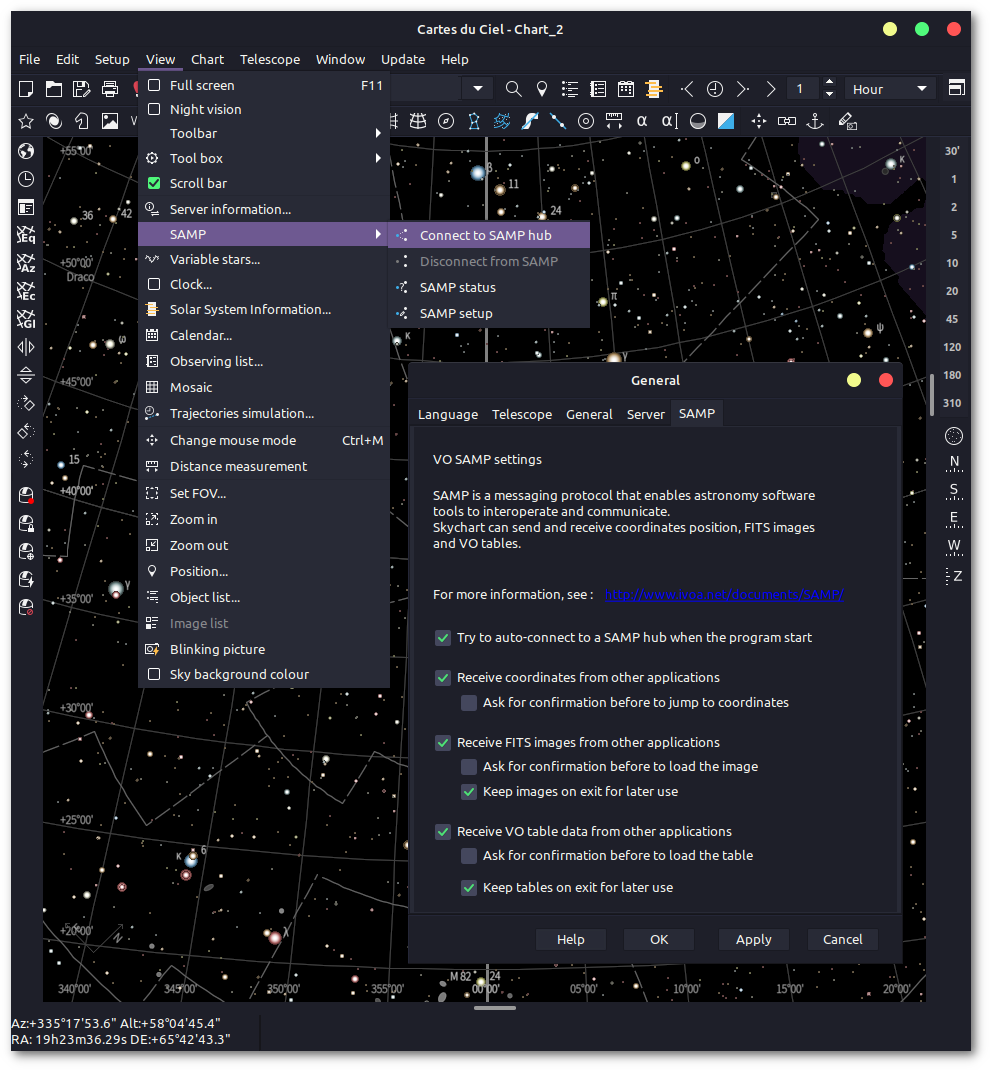

Fig. 21 Carte du Ciel SAMP client#

Image viewers#

SAOImage DS9 is an image display and visualization tool for astronomical data. It can display astronomical images in the FITS format. It is a SAMP enabled client and can send, receive, and display images and data from other SAMP clients. It can also query many astronomical databases directly.

_images/ds9_1.png

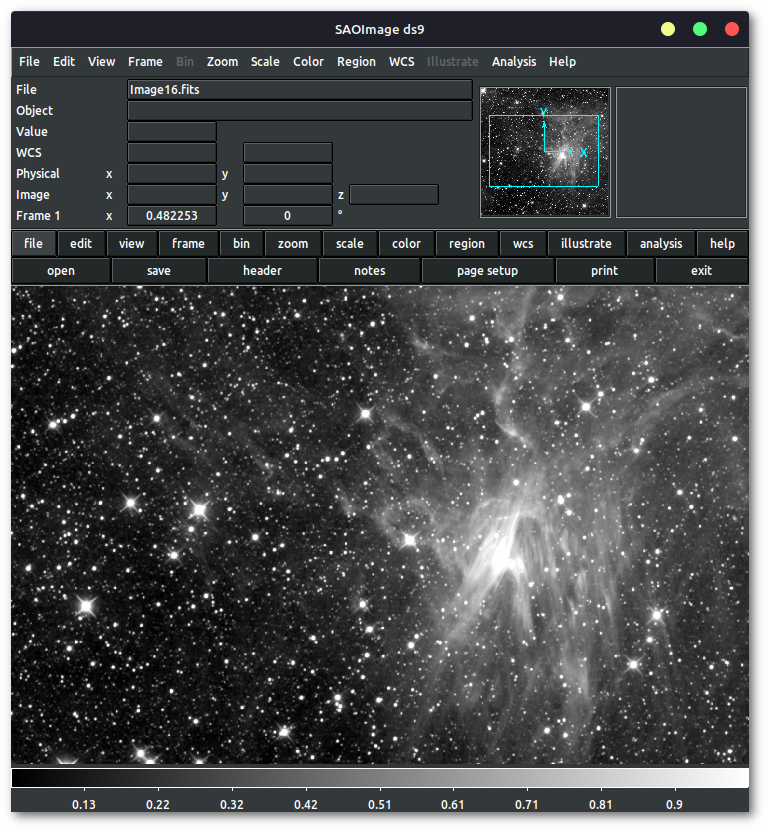

Fig. 22 ds9 image viewer#

Online sky atlases#

There are several online sky atlases the are built on and utilize CDS data.
