CDS SIMBAD#

SIMBAD: Set of Identifications, Measurements, and Bibliography for Astronomical Data.

http://simbad.cds.unistra.fr

SIMBAD is a database that provides basic information for many astronomical objects such as name and identification, coordinates, magnitudes, proper motions and parallax, velocity/redshift, size, spectral or morphological type, and bibliographic information. It is a dynamic resource that is updated daily.

As of 2023-11-07 the SIMBAD data base contains:

  • 16,943,427 objects

  • 61,325,632 identifiers

  • 426,969 bibliographic references

SIMBAD does not contain information for Solar System bodies.

You can query SIMBAD by object ID, coordinates in sexagesimal or decimal degrees, or by criteria (Ra, Dec, object type, magnitude, etc.). There is also a TAP (Table Access Protocol) interface and the database can be accessed through third party applications (Cartes du Ciel, Astroquery, etc.)

The SIMBAD users guide has additional information.

_images/SIMBAD.png

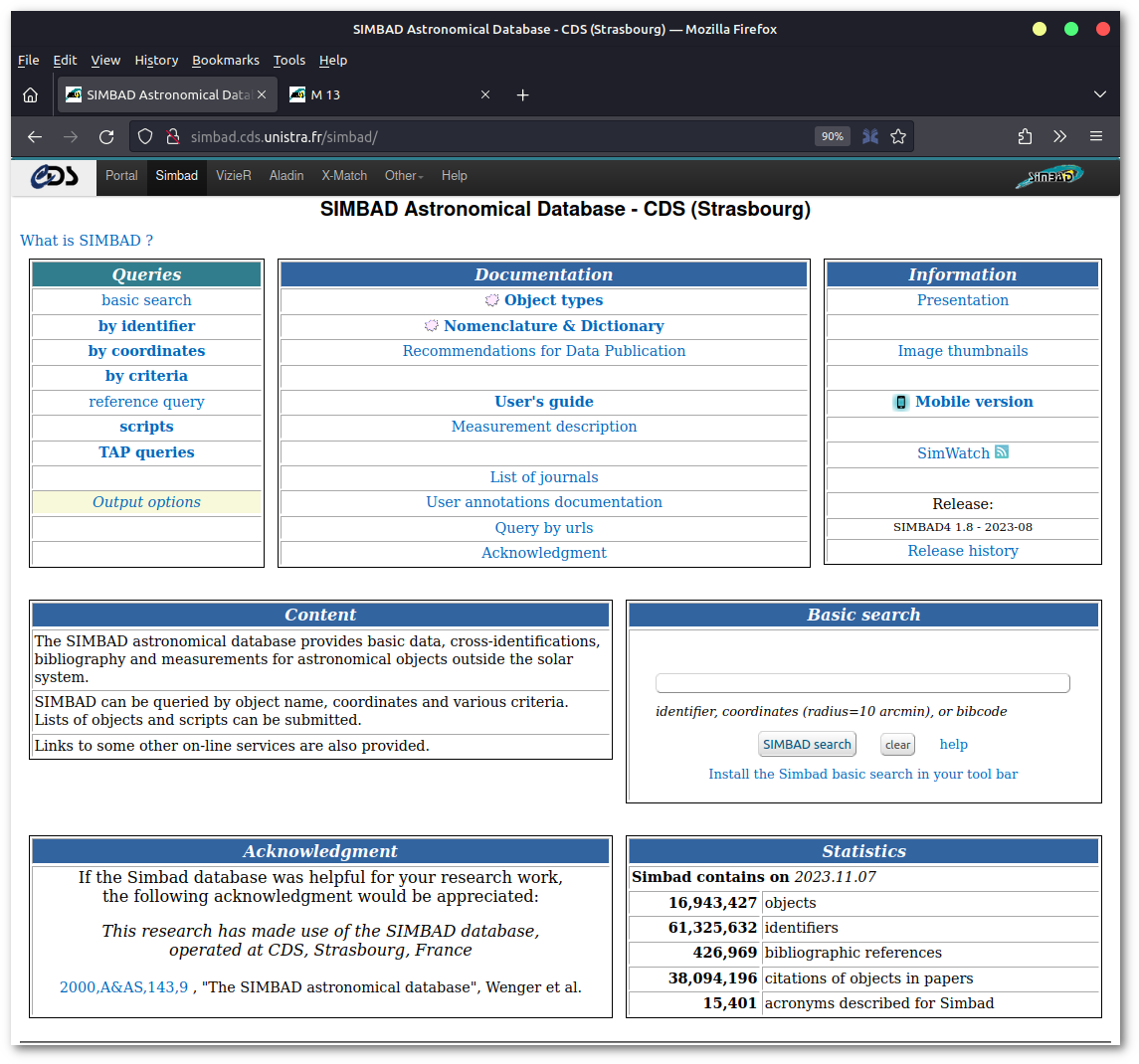

Fig. 4 SIMBAD Object Database#

Query by object ID#

You can query a single object ID, or several objects in a text file containing one item per line.

Wildcards and ranges can be used in identifiers.

* : Any string of characters (including an empty one)

? : Any single character.

[abc] : Exactly one character taken from the list.

[A-Z] : One character from a range.

[^0-9] : Any character not in the list.

You can also query all objects within a specified radius of your target.

_images/SIMBAD_ID.png

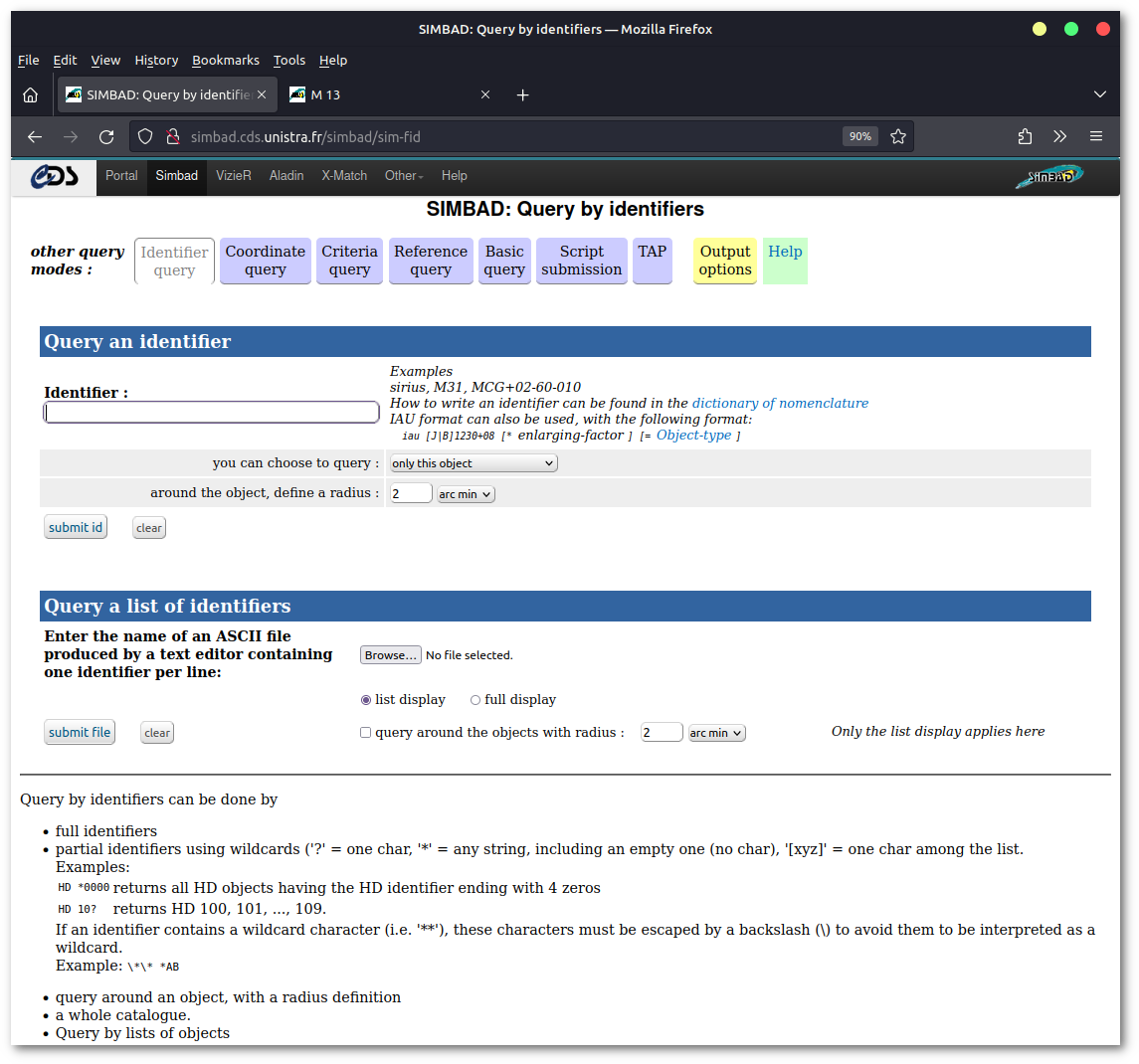

Fig. 5 SIMBAD Object ID Query#

Query by coordinates#

You can query SIMBAD by coordinates and a search radius. You can search a single coordinate or a list of coordinates from a text file with one coordinate per line. For large queries the CDS X-match service is faster.

The following coordinate formats are allowed:

HMS DMS

16 41 41.6 +36 27 40.7
16:41:41.6 +36:27:40.7
16h41m41.6s +36d27m40.7s

DMS DMS

250d25m24.5s +36d27m40.7s

DH DD

16.694898h +36.461319d

DD DD

250.42347 +36.461319

In general sexagesimal coordinates are in HMS DMS and decimal coordinates are in degrees unless a unit is specified.

_images/SIMBAD_coord.png

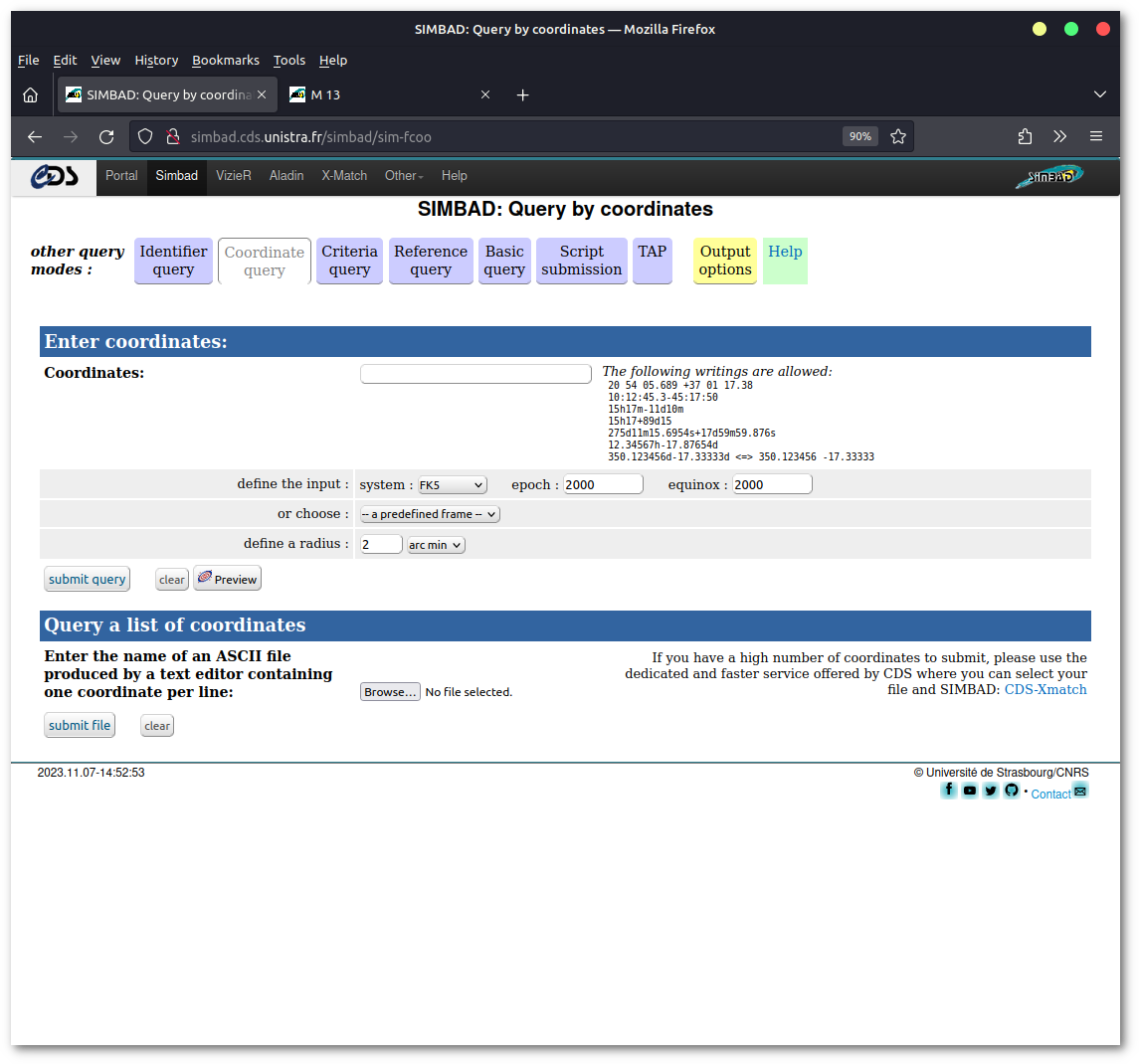

Fig. 6 SIMBAD Object Coordinates Query#

Query by criteria#

You can SIMBAD for various criteria and constraints using boolean operators. Queryable criteria and allowed operators are listed on the query by criteria page.

operator

description

example

=

equality

otype = ‘*’

!=

not equal

otype != ‘galaxy’

<

less than

Bmag < 8.5

<=

less than or equal

sptype <= ‘G5’

>

greater than

pm > 10

>=

greater than or equal

redshift >= 1.0

∼

contains the wildcard expression

author ∼ ‘barnard*’

!∼

does not contain the wildcard expression

author !∼ ‘barnard*’

in

contains at least one value among the list

cat in (‘hd’,’hr’,’sao’)

&

and

dec > 40d & dec < 80d

|

or

otype = ‘C*’

You can also query by region or a defined shape; circle, ellipse, zone, box, rotatedbox, polygon.

Examples:

  • dec > 85 & cat in ('hd', 'hr', 'sao') & otypes= V* Get all variable stars having a declination over 85 deg, and in either the Henry Draper, Yale Bright Star or SAO catalogs.

  • region(circle, 'M81', 2d) & otype = 'G' & (Bmag < 14 | Vmag < 14 | Rmag < 14) Find all galaxies in a 2 deg radius circle around Messier 81 and B, V, or R mag less than 14.

See the SIMBAD users guide for additional information.

_images/SIMBAD_criteria.png

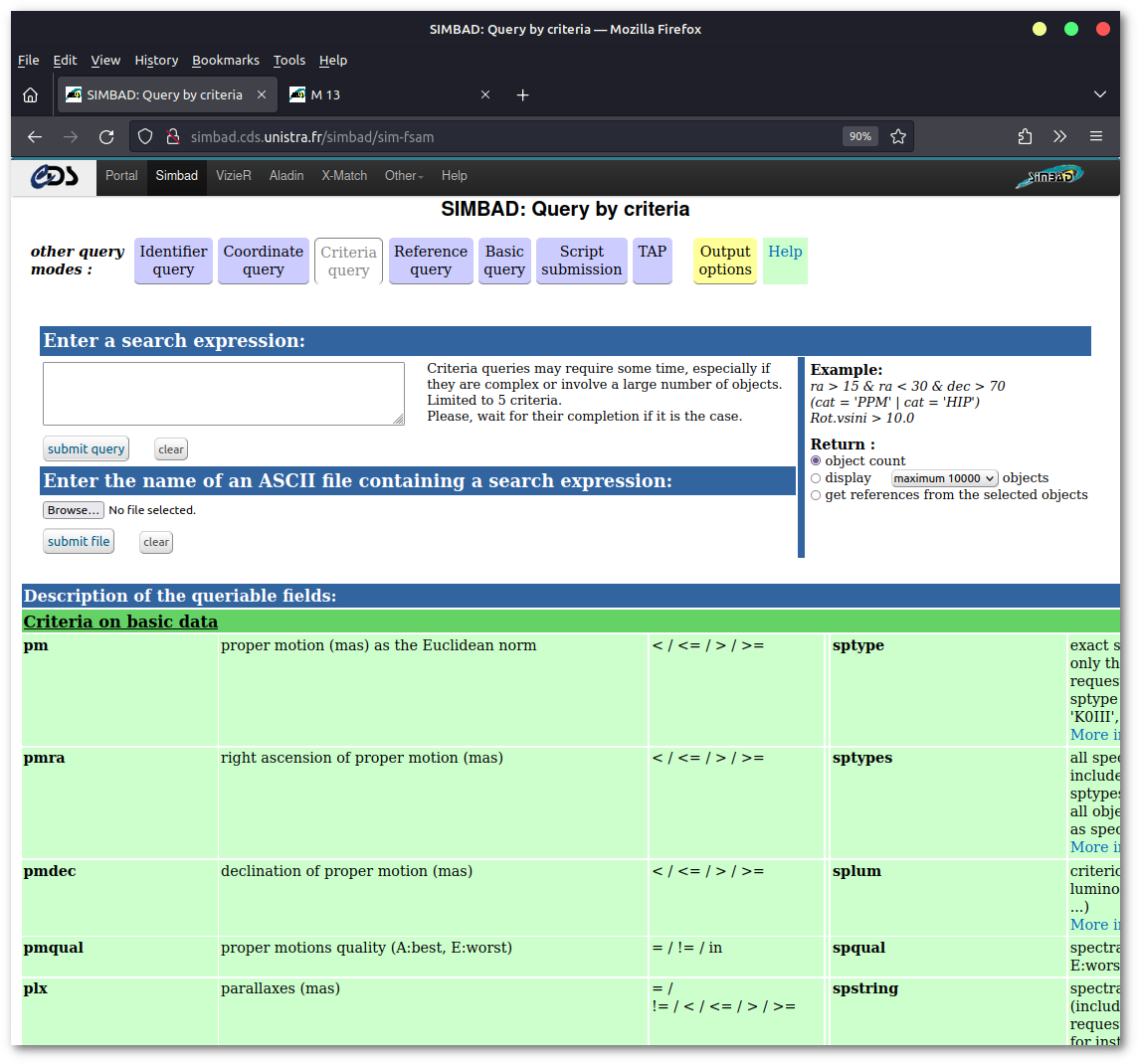

Fig. 7 SIMBAD Object Criteria Query#

TAP query#

The Table Access Protocol (TAP) is an access protocol used across many sites to access astronomical data. TAP queries are written in the Astronomical Data Query Language (ADQL) which is a superset of SQL. Those who have some experience with SQL should find it familiar others would most likely prefer alternate interfaces such as astroquery.

See the SIMBAD ADQL guide for more information.

_images/SIMBAD_TAP.png

Fig. 8 SIMBAD TAP Query#

Query results#

The information returned by a SIMBAD query includes:

  • Basic data (coords, magnitudes, pm, parallax, etc.)

  • An Aladin thumbnail of the region around the target

  • Linked objects, children and parents

  • A list of identifiers

  • List of bibliographic references

  • List of measurements (pm, plx, distances, etc.)

  • Links to external archives and to the catalogs in VizieR

_images/SIMBAD_1.png

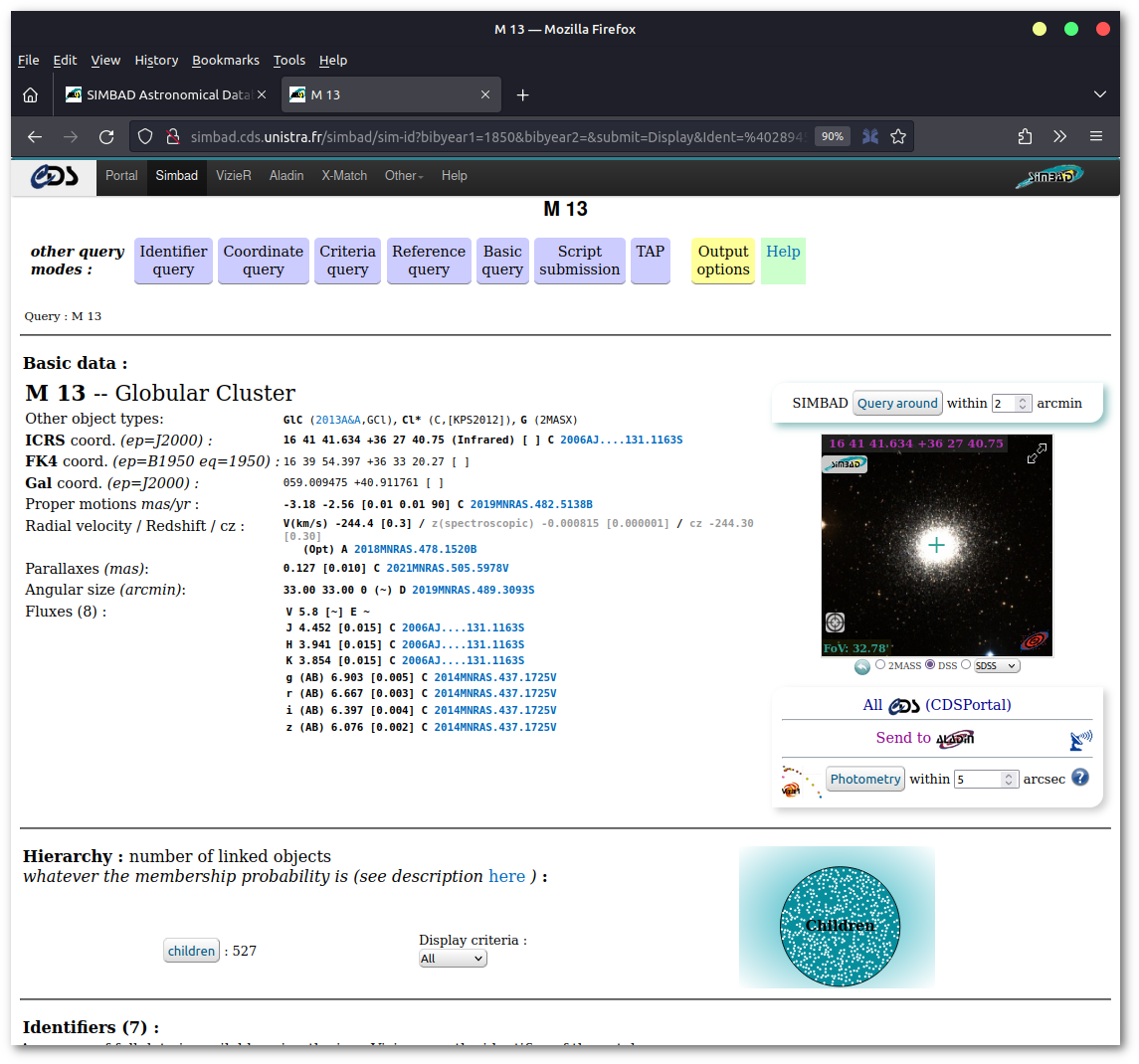

Fig. 9 SIMBAD SIMBAD Query#
